Interactive digital electronics

Build, test, and understand real logic circuits.

Choose a course laboratory to construct circuits step by step, predict their behavior, test your understanding, and complete guided practice.

Course

Logic Design I

Five progressive laboratories—from fundamental gates through combinational circuits and one-bit memory.

Build and test NOT, AND, and OR circuits.

Explore NAND, NOR, XOR, and XNOR.

Construct binary SUM and CARRY networks.

Select and route digital data between channels.

Store one bit and study enable-controlled memory.

Continue with the existing sequential-logic laboratory collection.

Construct and test a remotely connected D-latch.

Build a D flip-flop from two latches and test clocked storage.

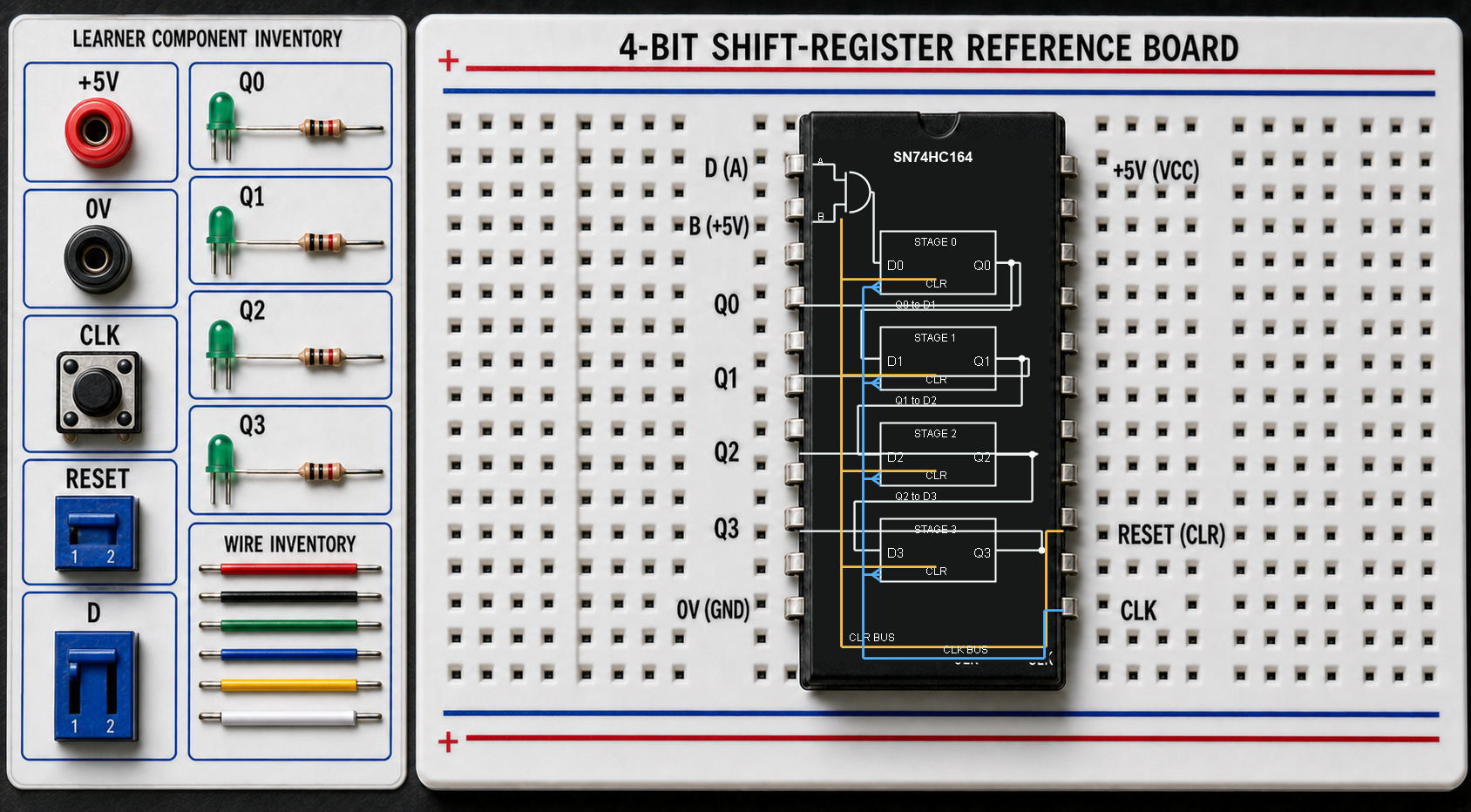

Apply clock pulses and observe data move through Q0 to Q3.
